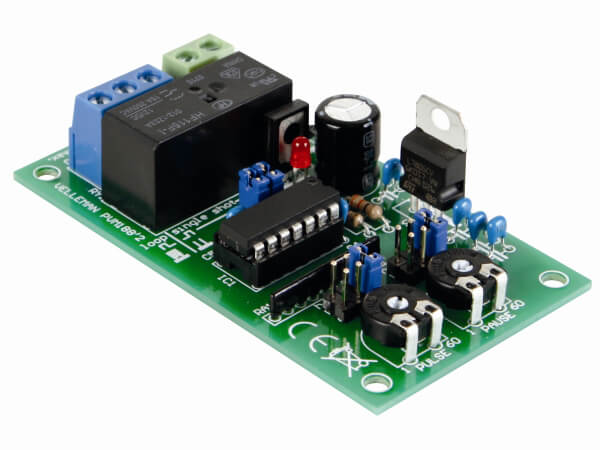

Velleman VM188 - 1Sec - 60Hr Pulse-Pause Timer Module
Velleman VM188 Electronic Module (Pre-Assembled)
Velleman Modules Range

The Velleman VM188 1Sec - 60Hr Pulse-Pause (On/Off) Timer Relay Module is a general purpose cyclical timer for various timer automation applications. It provides intermittent (ON-OFF-ON-OFF, etc) operation of circuits and equipment via the high current 16 Amp mains rated onboard relay output.

This timer actives the relay for a user-set Pulse time between 1 second and 60 hours. Once this time period has elapsed, the relay with turn off for a user-set Pause time between 1 second and 60 hours. This process is repeated with the relay turning on and off for the same time periods until power is removed.

Also available as a self-assembly kit (Order Code MK188)

Features
  • wide timing range - 1 Second to 60 Hours
  • independent setting of pulse and pause delay times
  • easy time setting for each using:
    • choice of 3 time scales (Seconds, Minutes or Hours)
    • trimmer to adjust time in the scale set (0-60 Sec, 0-60 Min or 0-60 Hrs)
  • Start with 'pulse' or 'pause'
  • 'single shot' or'continuous loop' selection
Applications
  • blinking of lights
  • pulsed operation of buzzers
  • automatic irrigation
  • lawn sprinklers
  • toilet flushing or ventilation
  • battery charging time control
  • cyclic operation of equipment
Specifications
  • power supply: 12-24VDC (e.g. Order Code 660.446UK)
  • relay output: Up to 240Vac or 24Vdc @ 16 Amps max.
  • dimensions: 80x45x22 mm / 3.15 x 1.78 x 0.86"
  • Suitable enclosure: WCAH2853
  • Product format: PRE-ASSEMBLED Electronic Module Product Format Info
Velleman VM188 DocumentationBuy Velleman VM188 1Sec - 60Hr Pulse-Pause Timer Module
Item Number:
Velleman VM188
Total Price:
£12.95 +VAT, £15.54 Inc
Stock Info:
In Stock
Your Total:
Quantity:
