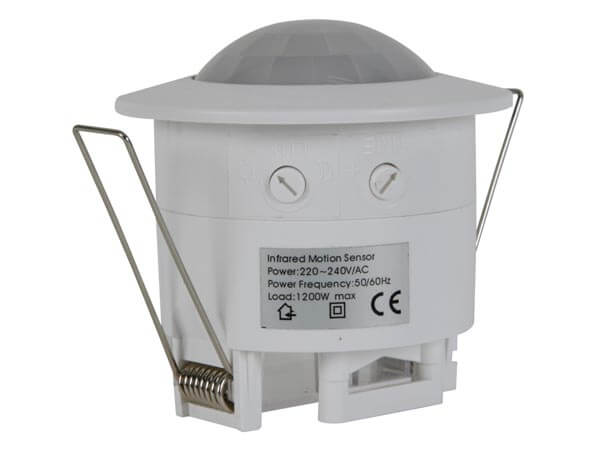

The PIR41 is a small, discreet and attractive fully assembled, 240Vac mains powered PIR Motion Detector with Ø 45mm Fresnel lens and is ideal for incorporating into roof panels, etc.
It provides automatic day/night identification, adjustable light sensitivity (3-2000 Lux) and ON-time (10 Sec-7 Min). installation height: 2.2~4m.
Ideal for incorporating into other systems.
Features- automatic day/night identification
- light sensitivity and ON-time adjustable
- for building-in
Specifications- detection:
- angle: 360°
- distance: max. 6m (<24°C)
- motion speed: 0.6~1.5m/s
- ON-timer: adjustable from 10s (+/-3s) up to 7min. (+/-2min.)
- light sensitivity: 3-2000 Lux (adjustable)
- maximum rated load:
- resistive: 1200W (230 Vac)
- inductive: 300W (230 Vac)
- not recommended for capacitive loads like:
- LED drivers
- switch mode current drivers
- power supply: 230Vac/50Hz
- power consumption: 0.45W (active) / 0.1W (stand-by)
- installation height: 2.2~4m
- indoor use only
- dimensions:
- visible part: 75 x 15mm
- build-in part: 60 x 60mm
- weight: 100g
- Product format: PRE-ASSEMBLED Electronic Module Product Format Info
- PIR41 User Guide
