PEM7DUK - Mini Infrared Security System

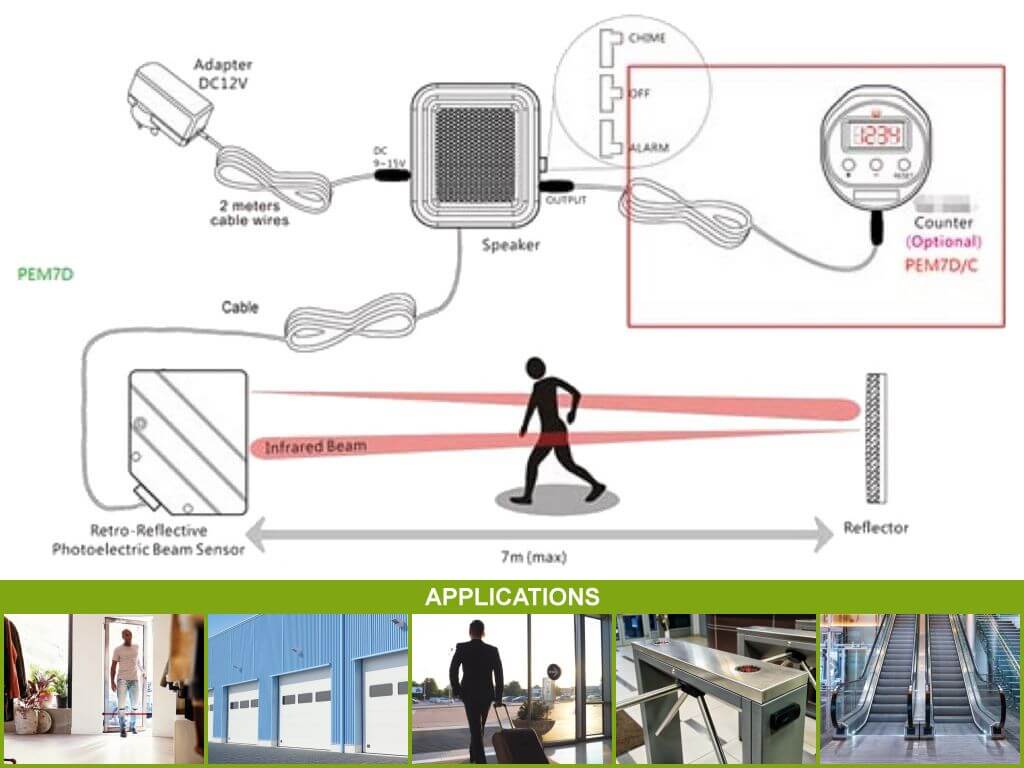

Complete infrared (IR) security system, which is ready assembled and easily installed, allowing low cost monitoring of door or walkways, announcing intruder or customer. Ideal for shops, offices, warehouses and receptions.

Features
  • easy to install
  • adjustable timer & volume
  • applications:
    • entry detection
    • automatic alarm warning
    • present detection
  • includes:
    • 1 x retro-reflection IR photoelectric beam sensor
    • 1 x power supply 230Vac / 9V DC, 200mA
    • 1 x European to UK Plug Adaptor (where applicable)
    • 1 x alarm speaker (timer & volume adjustable)
Specifications
  • Separate Speaker Unit with Volume & Timer Adjustment Controls, Chine-Off-Alarm Selector, Output and DC power input)
  • Retro-reflective IR photosensor with 10m (approx.) lead for Speaker Unit
  • Additional External Output: NPN open collector (for external device e.g.
  • Choice of either Alarm or Chime output or Off
  • 1 second duration for chime, 30 seconds for alarm
  • Adjustable activation time (3-30 sec.) and volume
  • Nominal detection range 7m
  • For indoor use only
  • Supply Voltage: 9Vdc, 200mA (230Vac mains adaptor power supply included)
