1+7 Channel Telephone Activated Relay Board

1+7 Channel Telephone Activated Relay Board
1+7 Channel Telephone Activated Relay Board
1+7 Channel Telephone Activated Relay Board
1+7 Channel Telephone Activated Relay Board
AS1225KT - 1+7 Channel Telephone Activated Relay Board
Ability Level 3: IntermediateProduct Formats Available: Pre-Assembled Module (AS) or
Self-Assembly Electronic Kit ( Soldering Required)

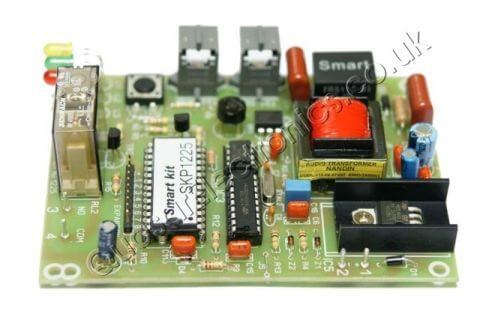

DTMF Decoder telephone activated relay board with one onboard relay plus eight digital outputs for driving an external relay board. Ideal for control of external electrical devices simply by calling your phone from any location in the world and making a few key presses.

The board has a single 10 Amp mains rated relay output that you can use the relay to control external devices in your home, office, factory, etc.

The board also has 8 additional digital outputs that can be connected to an external relay board like our CT006 (not included). Channel 1 is shared with the onboard relay output.

It has three LED status indicators and the relay status can also be verified remotely using the phone line.

4 number user-settable access code for security. The circuit is PIC based for accuracy and reliability. The unit will answer the incoming call almost immediately (1 ring). This setting is not user adjustable. If you require more flexibility please see our 4-Channel DTMF Telephone Remote Control Relay Switcher (3140).

Unit can be used with a standard landline or GSM unit (not supplied). Please see User Manual below for details.

The board includes an impedance matching transformer. RJ-11 telephone Line-in and Extension-Out sockets. Solder posts for relay and power connections. Solder provided with kit version.

Specifications
Supply Voltage12Vdc, 0.5A (Order Code 660.446UK with connector 778.106)
Relay Output1 x SPDT Relay
Relay Output Load10 Amps @ 230Vac max.
Relay ConnectionsCommon, Normally Open (the Normally Closed relay contact is present but NOT brought out)
Additional Outputs8 x TTL (Logic Level) Digital Outputs
User Settings1. Password (4 digits)
Board Dimensions86 x 115 x 28 mm
EnclosureWCAH2851
Board Connections2 x RJ11 Telephone Sockets (Line-In / Extension-Out)
Solder posts for power and relay connections
Compatibility* This product can be connected to any analogue or broadband phone line and both corded or cordless (analogue and DECT) telephone sets and is operated using simple DTMF tones. It can also be used through a GSM unit.
Product FormatsSELF-ASSEMBLY Electronic Kit (KT)or
PRE-ASSEMBLED Electronic Module (AS) Product Formats Info
DocumentationUser Manual
Optional Extras
    • BT to RJ11 Phone Cord (Order Code 113.522UK for UK phone systems)
    • 8-Channel Isolated IO Relay Board Module (Order Code CT006)
Obsolete/Discontinued

You might also like . . .

113.522UK, 113.524UK, 113.526UK - Standard 4-Pin Modem Lead Range

Reverse wired modem lead range. RJ11 plug to UK BT431A plug...

£2.15 +VAT, £2.58 Inc
In Stock
660.446UK - Eco Switch-Mode Power Supply 12Vdc, 1000mA (UK Version)

High quality Erp Compliant energy efficient fixed 12V regulated 1000mA max...

Buy 1-4: £8.90 +VAT, £10.68 Inc Each
Buy 5-19: £7.56 +VAT, £9.07 Inc Each
Buy 20+: £7.12 +VAT, £8.54 Inc Each
In Stock
Velleman K6501 - Remote Control By Telephone Electronic Kit

This kit makes it possible to turn up to three devices on or off over the telephone. It is also possible to check the condition of a switch (open or closed)...

£29.95 +VAT, £35.94 Inc
In Stock
AS1186KT - 4(8)-Channel Telephone Activated Relay Board

4/8 channel DTMF telephone activated relay board. Control up to 8 mains rated electrical device simply by calling your phone from any location in the world...

£74.96 From £59.97 +VAT, £71.96 Inc (Save 20%)
In Stock
AS3140KT - DTMF Telephone Relay Switcher

This device connects to your telephone line and has 4 relay outputs capable of switching 5 amps max. You can then call your number using a DTMF (tone dialling) telephone from anywhere in the world and remotely turn...

From £66.63 +VAT, £79.96 Inc
Out Of Stock
Cebek T-6 (CT006) - 8-Channel Isolated IO Relay Board Module

8 channel opto-isolated IO relay board. The optocouplers electrically isolate the control signal of each input from the corresponding mains rated relay output...

£46.04 +VAT, £55.25 Inc
In Stock
Quasar Electronics Limited
