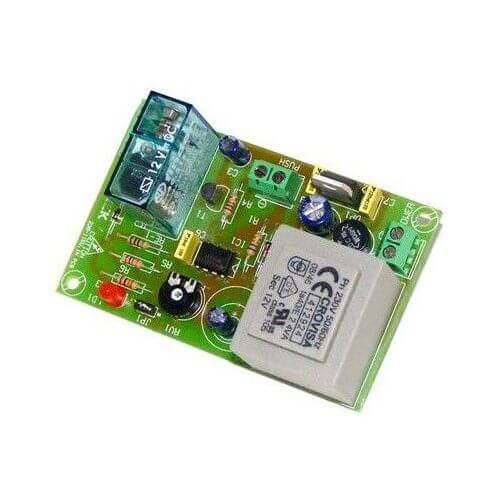

230Vac mains powered 1 to 180 Second 'Disconnection' or 'Turn-Off' or 'Instant-On and Hold, Delayed-Off' timer module with a mains rated relay output.
When Start input is activated, the relay turns on but the user-set delay period does NOT commence. This state is maintained while the trigger signal is present. Loss of trigger signal starts the delay timing cycle. Relay releases at end of delay period and timer returns to waiting state. Delay period is restarted if trigger input is activated during the turn-off delay time.
Timer is activated via the Start Input (using for example a push button or relay contact closure).
The delay period is adjustable from 1 to 180 seconds using the onboard potentiometers (header pins allow the use of user-supplied external potentiometers if required).
Applications: Allows a pump or fan to remain on for a while after a sensor detects a preset level, to prevent cycling.
|Output||1 x SPDT Relay|
|Up to 240Vac or 28Vdc @ 5 Amps max. (Relay Datasheet)|
|Relay Connections||NO, NC, C (Relay FAQ)|
|Dimensions (WxDxH)||~ 84 x 55 x 33 mm|
|Product Format||PRE-ASSEMBLED Electronic Module Product Format Info|
|Documentation||Cebek I-138 User Manual|
|WARNING||Product operates at mains voltage and is not suitable for children. An isolating enclosure is required (not included). Installation, testing and commissioning should be performed by a competent person. Mains Electricity Info|
