+/- 32V, 3A Dual Polarity Power Supply with 230Vac Chassis Transformer

Cebek FS-7 (CFS007) - +/- 32V, 3A Dual Polarity Power Supply with 230Vac Chassis Transformer
Cebek FS-7 Electronic Module (Pre-Assembled)
Cebek Electronic Modules

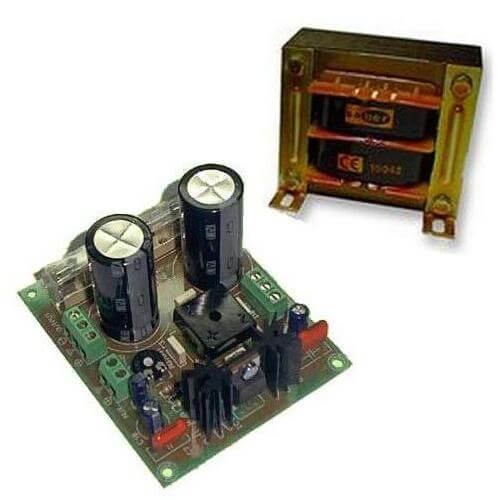

Dual polarity ±32Vdc, 3 Amp stabilised power supply module complete with a 230Vac mains chassis transformer. A secondary output provides an adjustable 18Vdc, 150mA.

The module provides a stabilised output with short circuit protection, LED indicators, onboard fuses and screw terminal blocks for connections.

Suitable for powering two of our CE007 amplifier modules

The module is supplied fully assembled. All you need to do is house it in a suitable enclosure with the supplied chassis transformer, add the wiring and an on/off switch. Ideal for powering many projects.

Specifications
Input Voltage230Vac mains
Output voltage±32Vdc
Continuous output current3 Amp max.
Secondary output18V (adjustable 17 - 22V)
Secondary output current150 mA max.
Module dimensions~ 72 x 88 x 30 mm
Transformer dimensions~ 85 x 80 x 75 mm
Board ConnectionsScrew terminal blocks
Product FormatPre-Assembled electronic module with
separate mains chassis transformer
WARNINGProduct operates at mains voltage and is not suitable for children. An isolating enclosure is required (not included). Installation, testing and commissioning should be performed by a competent person. Mains Electricity Info
Item Number:
Cebek FS-7 (CFS007)
Your Price:
£28.69 +VAT, £34.43 Inc
Stock Info:
In Stock
Your Total:
Quantity:
