Keypad Access Control Module

Cebek DA-03 (CDA03) - Keypad Access Control Module

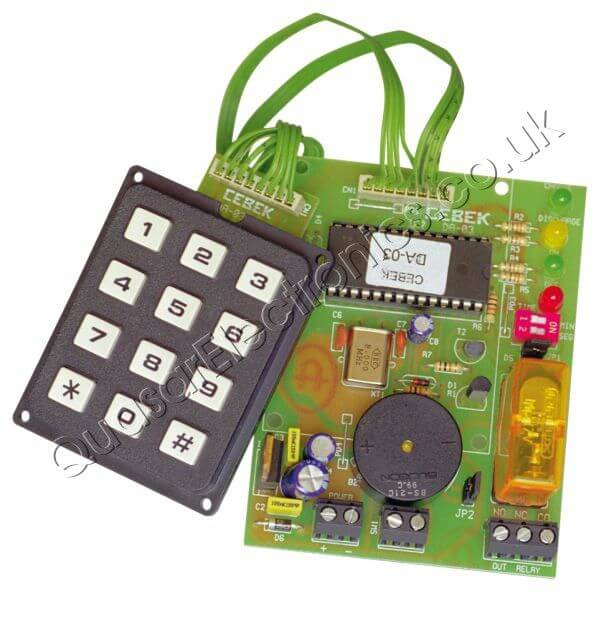

CEBEK DA-03 Electronic Module (Pre-Assembled)
Cebek Electronic Modules

The Cebek D-03 module is an electronic lock controlled by a keypad. You can program up to 10 different 4 digit PIN codes. These are stored in non-volatile memory so are retain in the event of power loss. PIN codes can be enabled or disabled as the system administrator requires.

The module is fitted with a buzzer that sounds when a PIN code is entered and LEDs that provide a visual indication of the PIN codes access status. There is a mains rated relay output with an adjustable ON time between 1 and 60 second or 1 and 60 minutes.

Keypad included.

Specifications
Operating Voltage12Vdc
Current Consumption60mA max
Suitable Power SupplyCFE103
Output1 x SPDT Relay
Maximum Output
Load (Resistive)
Up to 240Vac or 28Vdc @ 5 Amps max. (Relay Datasheet)
Relay ConnectionsNO, NC, C (Relay FAQ)
OutputBuzzer
Board ConnectionsScrew terminal blocks
Dimensions (WxDxH)Control Board: ~ 90 x 70 x 40mm
Keypad PCB: ~76 x 51 x 20mm
Keypad: ~64 x 51 x 12mm
Weight126g
Product FormatPRE-ASSEMBLED Electronic Module Product Format Info
Item Number:
Cebek DA-03 (CDA03)
Your Price:
£42.48 +VAT, £50.98 Inc
Stock Info:
In Stock
Your Total:
Quantity:
