4-Digit Up/Down Counter Module (20mm Digits)

Cebek CD-7 (CCD007) - 4-Digit Up/Down Counter Module (20mm Digits)
CEBEK CD-7 Electronic Module (Pre-Assembled)
Cebek Electronic Modules

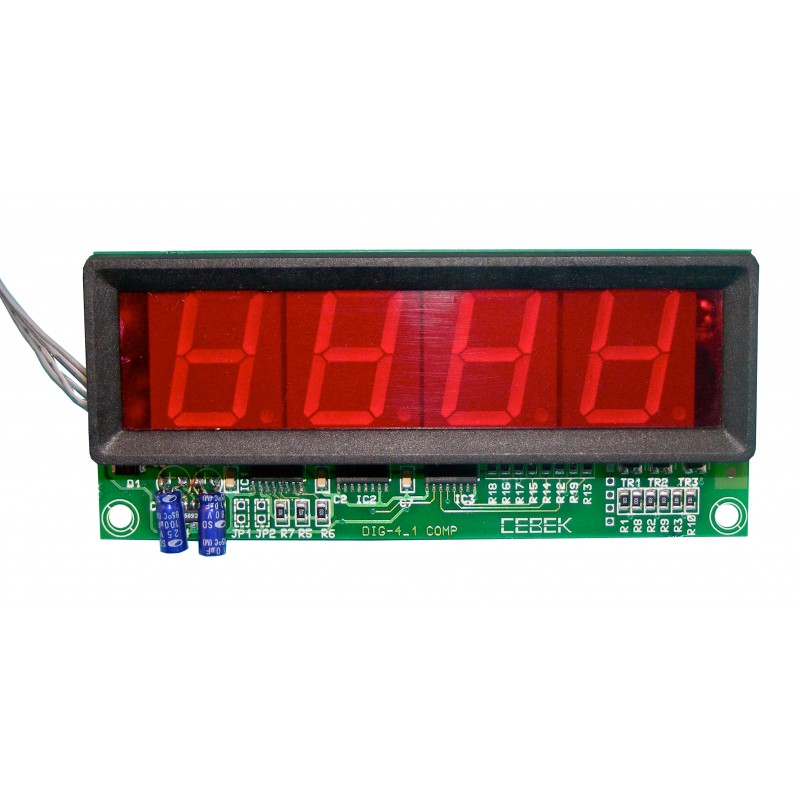

The Cebek CD-7 module is a 4-digit UP / DOWN counter with Reset and a 20mm LED display.

Count starts at zero and increases by one digit (to a maximum of 9999) each time a count impulse is received. It can also count down, subtracting from the count.

Count input accepts a simple make contact closure (e.g. a push button, relay closure) or injection of an external pulse (5Vdc).

The counter has a Reset input to zero the count and display.

Specifications
Operating Voltage12 or 24Vdc
Current Consumption350mA
Suitable Power SupplyCFE123
Display4-Digit, 7-Segment
Digit Height20mm
Range0 - 9999
Board ConnectionsScrew terminal blocks
Dimensions (WxDxH)~ 110 x 65 x 55mm
Weight136g
Product FormatPRE-ASSEMBLED Electronic Module Product Format Info
Item Number:
Cebek CD-7 (CCD007)
Total Price:
£33.17 +VAT, £39.80 Inc
Stock Info:
In Stock
Your Total:
Quantity:
